DIAMOND CHARACTERIZATION
Diamond-on-insulator (DOI) wafers are characterized by AFM, thin film stress measurement system, spectroscopic ellipsometer and reflectometer.



Wafer



Rq



Ra

Si/SiO2/C+CMP

1.256 nm(1um*1um)
1.105 nm(5um*5um)

0.862 nm(1um*1um)
0.765  nm(5um*5um)

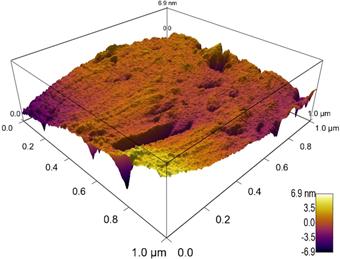

Figure 1. AFM surface roughness measurement of the DOI wafer

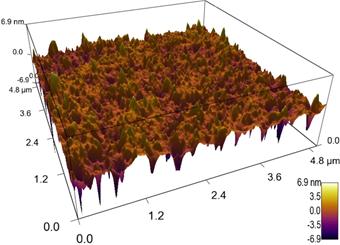

Figure 2. AFM surface roughness measurement of the DOI wafer

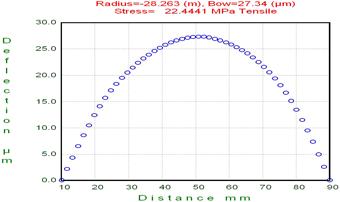

Figure 3. Thin film stress measurement of the DOI wafer
